Smart Grid 38
PremiumUniquely designed with interlocked main and cross tees, making it ideal for suspended and false ceilings in buildings, cinema halls, auditoriums and warehouses.
Smart Grid
Galvanized steel T-bar systems for suspended and false ceilings.
The Smart Grid suspended ceiling system (T-bar) is manufactured from galvanized steel coated with zinc to prevent corrosion through rusting. The underside carries a thick polyester coating that keeps it durable and able to withstand climatic changes. It is available as two systems.
- Galvanized, zinc-coated steel
- Thick polyester top coat
- Interlocked main and cross tees
- Grid 38 Premium and Grid 32 Standard
Two systems
Smart Grid 32
StandardA simple design of interlocked main and cross tees in light-weight galvanized metal, suitable for false ceilings of small areas such as retail shops and small offices.
Specifications
| Component | Dimensions | Thickness |
|---|---|---|
| Main runner | 38 mm H x 24 mm W x 3660 mm L | 0.23 mm |

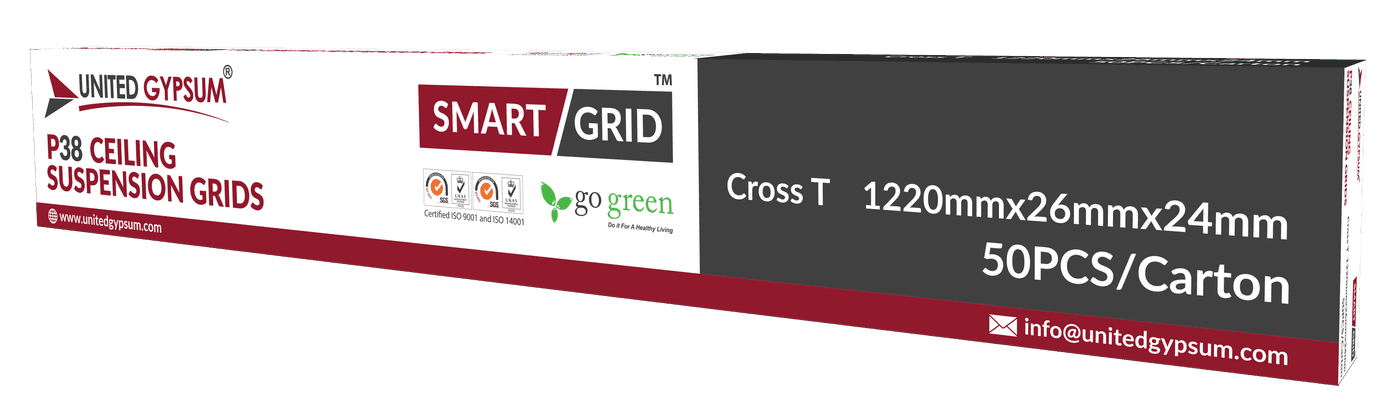

| Cross runner, long | 26 mm H x 24 mm W x 1220 mm L | 0.23 mm |
| Cross runner, short | 26 mm H x 24 mm W x 610 mm L | 0.23 mm |
| Wall angle | 22 mm H x 22 mm W x 3050 mm L | 0.23 mm |
Published by United Gypsum for Smart Grid 38 Premium. Confirm current figures with United Gypsum before ordering.
- Installation
- Suspend the main runner from the soffit with hanging wire, interlock the cross tees to form the grid, and screw the wall angle around the room perimeter. Smart Tile or Smart Gypsum Board then lays into or fixes onto the finished grid.
